● 多级泵

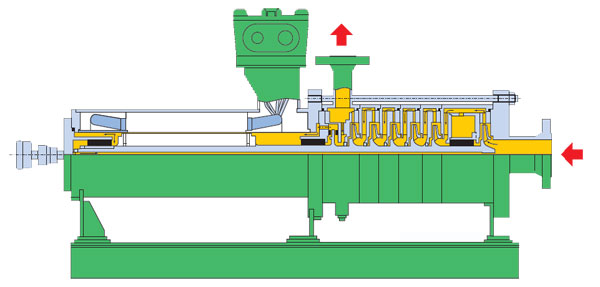

日机装屏蔽泵多级泵重新设计后,其性能显著提高,不仅泵的效率增大,而且平衡阀座的使用使得轴向推力在整个流量范围内都是平衡的。132kw细长电机也运用到多级泵系列中,应用范围扩大,更能满足客户的需求。
● Multi-stage Type
Nikkiso have thoroughly redesigned the Nikldso Non-sesl pump multi-stage type,greatly improve their performance by dramatically increasing pump efficiency, and accurately balance the axial thrust within the entire range of flow by using a balancing disk seat. Furthermore,up to 132kw slim motors have been added to the series tomeet a broad range of applications.We are sure that the Nikkiso Non-seal pump multi-stage type restyled will meet the expectation of our customers.
提高的效率
新设计的泵比细长电机泵的效率提高了10%,节约了能耗。
Enhanced efficiency
Comparedwith slim-motorpumps,the efficiency of the newly-designed pumps has been not 0nly enhanced by more than 10%,but offered greatly energy- saving.
规格
泵温:-30℃ to 150℃
粘度:Max.140mPa.s
设计压力:2~8MPa
接液材质:不锈钢
电机输出功率:5.5~132kw
防爆等级:dⅡBT4
Specifications
Pumpingtemperature:-30℃ to 150℃
Viscositv:Max.140mPa.S
Designpressure:2-8MPa
Liquid.contacting material:stainless steel
Motoroutput:5.5-132kw
Explosion—proof:Flame-proof dⅡBT4
